MCS

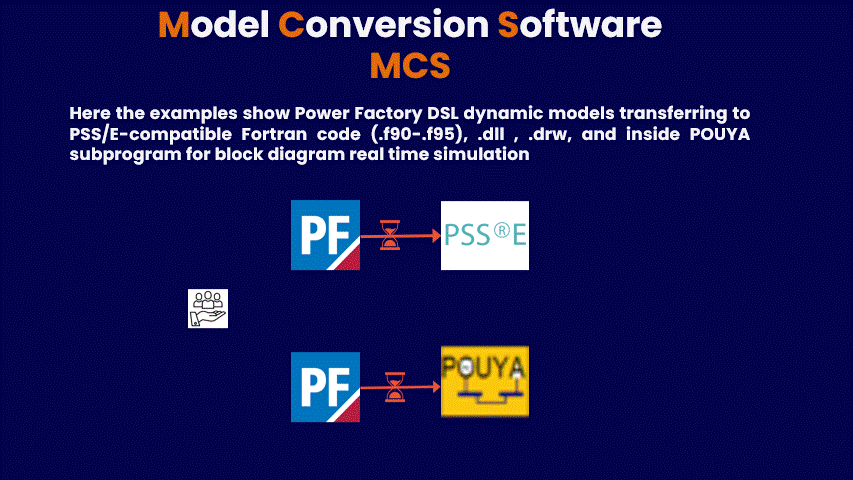

A converter program known as Models Conversion Software (MCS) has been developed to facilitate the conversion of DSL models to:

========>> FORTRAN files ==> .dll files ==> Block diagram drawing files ==> Real time simulation of the block diagram

MCS

advantages:

1-Reducing the manual modeling effort that sometimes takes more than a year for even a single model conversion.

2-Output of standardized Fortran files for all models.

3- Immediate testing of the model, allowing for instant error removal.

4- Block diagram transfer function drawing output is ready.

5- Real-time simulation of blocks, enabling performance testing of the models.

5- Models and sub-models interactions, ready to simulate large models.

6-Ability to merge models.

7- Capability to convert all models located in a subdirectory in a single run.

MCS (Models Conversion Software) is the first integrated platform that automatically converts DSL models into FORTRAN code therefore automates the migration of PowerFactory DSL models to PSS®E user-defined models, reducing engineering effort from weeks to minutes, DLL libraries, graphical block diagrams, and real-time simulations. By eliminating repetitive implementation tasks, MCS enables power-system engineers to develop, validate, and deploy dynamic models dramatically faster and with greater confidence.
